Booster Vacuum Pump Systems & Packages
>>Models of Booster Vacuum Pump Systems
Model Numbers Assembly Description Displacement With
Belt Drive		 Pump Motor Booster Motor Technical Data Part List
    CFM CMH (RPM-HP) (RPM-HP)

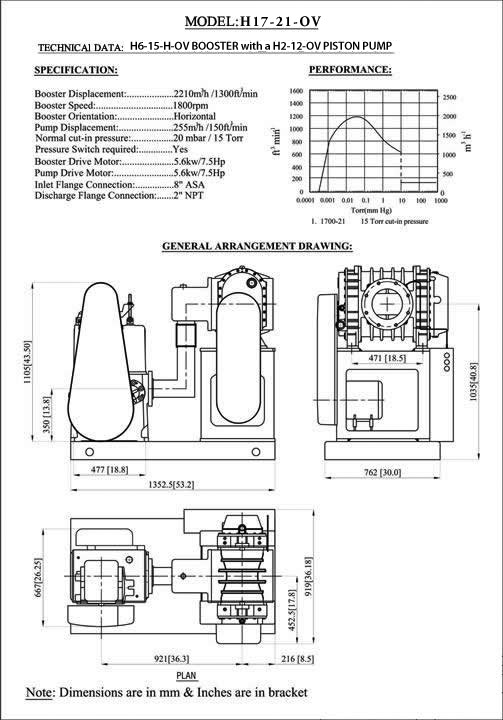

H17-21-OV 150-RP/6X15-MBH-1300 CFM 150/1300 2210 1800-10 1800-7.5 Click Here Click Here

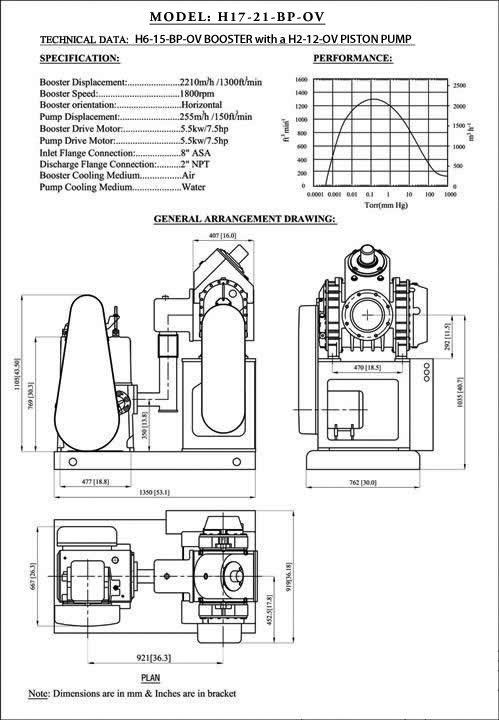

H17-21-BP-OV 150-RP/6X15-MBH-BP-1300 CFM 150/1300 2210 1800-10 1800-7.5 Click Here Click Here

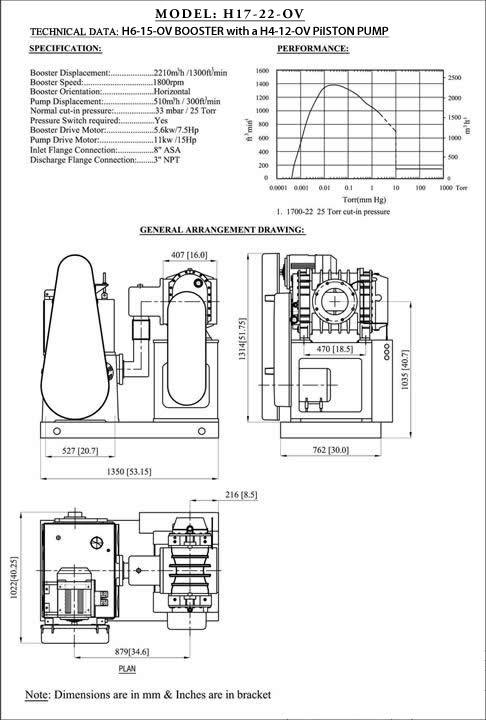

H17-22-OV 300-RP/6X15-MBH-1300 CFM 300/1300 2210 1800-10 1800-7.5 Click Here Click Here

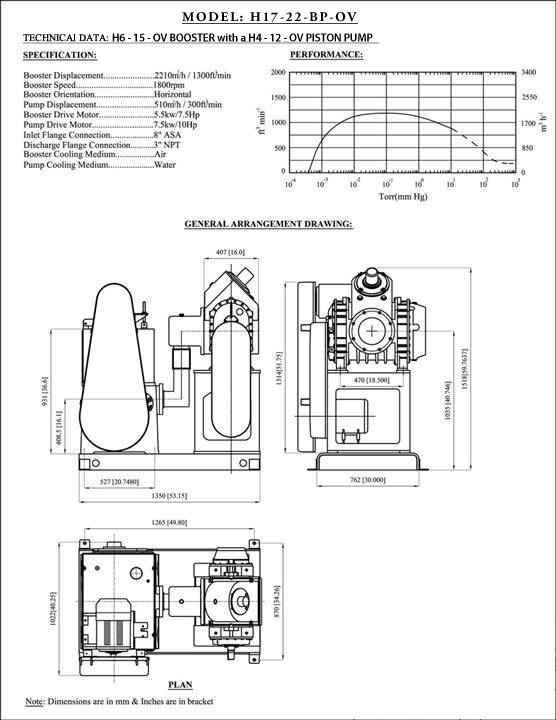

H17-22-BP-OV 300-RP/6X15-MBH-BP-1300 CFM 300/1300 2210 1800-10 1800-7.5 Click Here Click Here

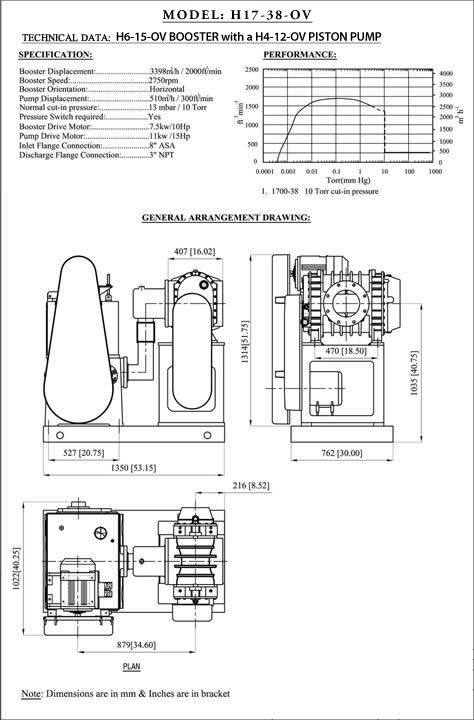

H17-38-OV 300-RP/6X15-MBH-2000 CFM 300/2000 3398 1800-15 2750-15 Click Here Click Here

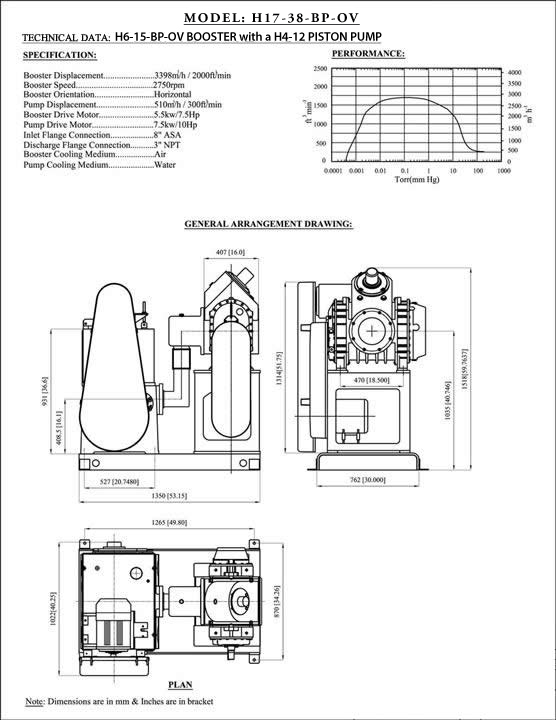

H17-38-BP-OV 300-RP/6X15-MBH-BP-2000 CFM 300/2000 3398 1800-15 2750-15 Click Here Click Here

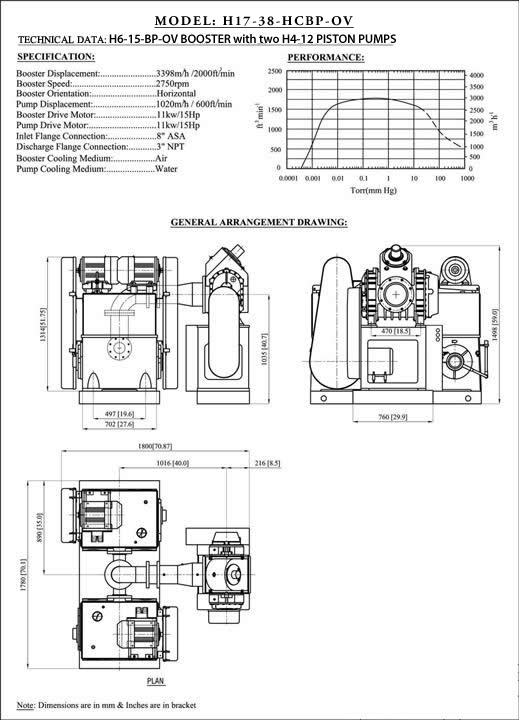

H17-38-HCBP-OV 600-RP/6X15-MBH-BP-2000 CFM 600/2000 3398 1800-15 2750-15 Click Here Click Here

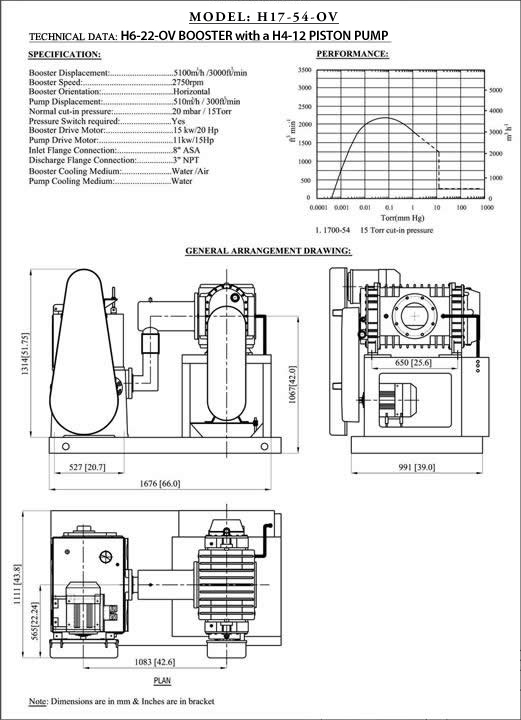

H17-54-OV 300-RP/6X15-MBH-3000 CFM 300/3000 5100 1800-15 2750-25 Click Here Click Here

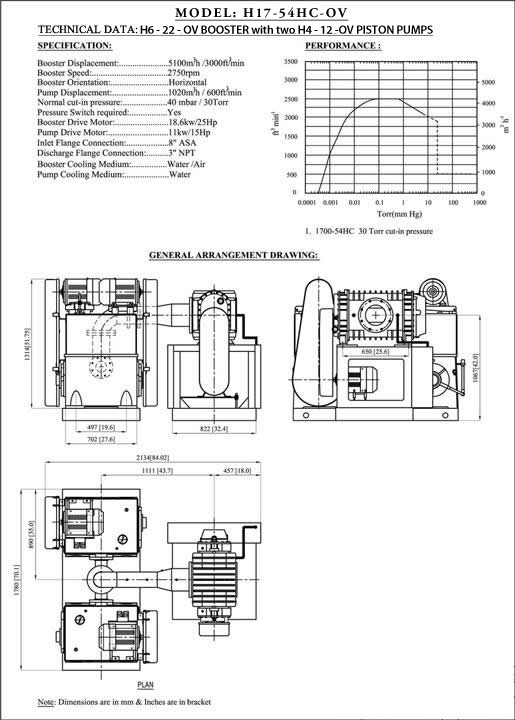

H17-54HC-OV 600-RP/6X15-MBH-3000 CFM 600/3000 5100 1800-15 2750-25 Click Here Click Here
Model Numbers Assembly Description Displacement With Direct Drive Pump Motor Booster Motor Technical Data Part List
    CFM CMH (RPM-HP) (RPM-HP)

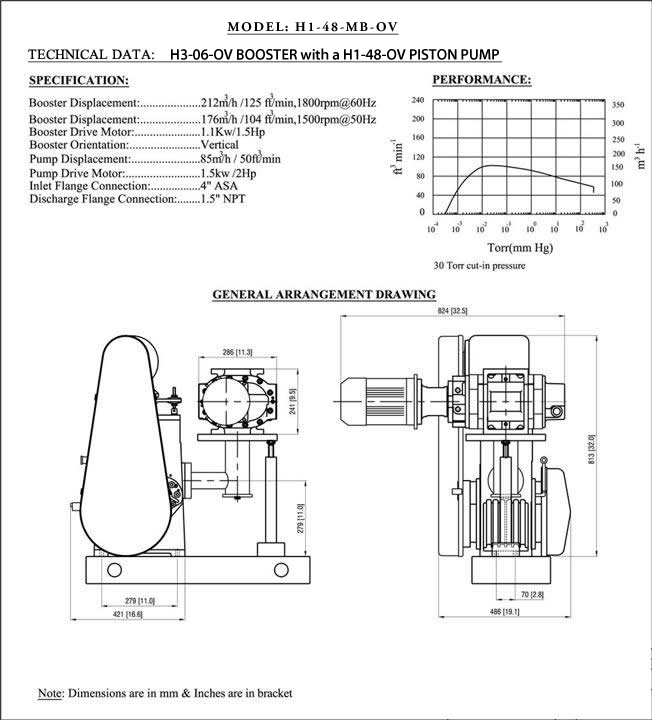

H1-48-MB-OV RP-50/3X6MBV-125-CFM 50/125 212 1800-3 1800-1.5 Click Here Click Here

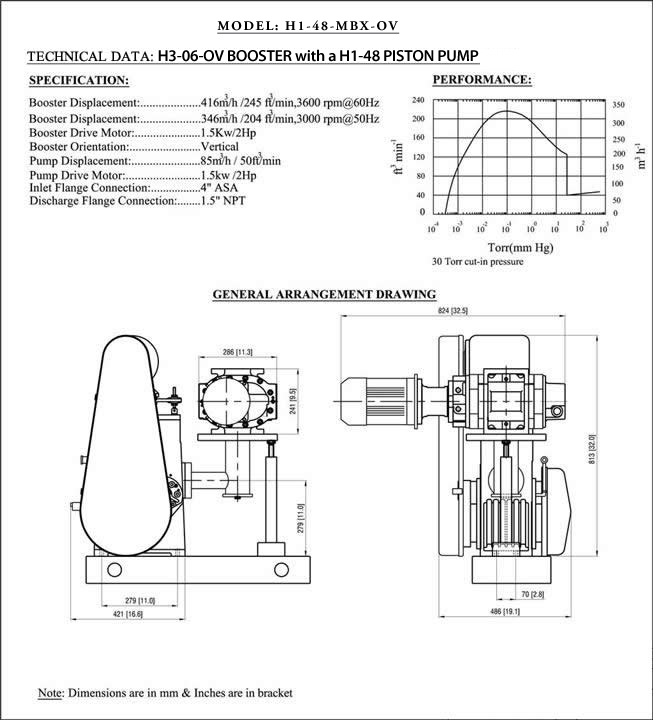

H1-48-MBX-OV RP-50/3X6MBV-245-CFM 50/245 416 1800-3 3600-2 Click Here Click Here
H2-12-MB-OV RP-150/3X6-MBV-245-CFM 150/245 416 1800-7.5 3600-2 Click Here Click Here
H4-12-MB-OV RP-300/3X10-MBV-400-CFM 300/400 310 1800-10 3600-3 Click Here Click Here

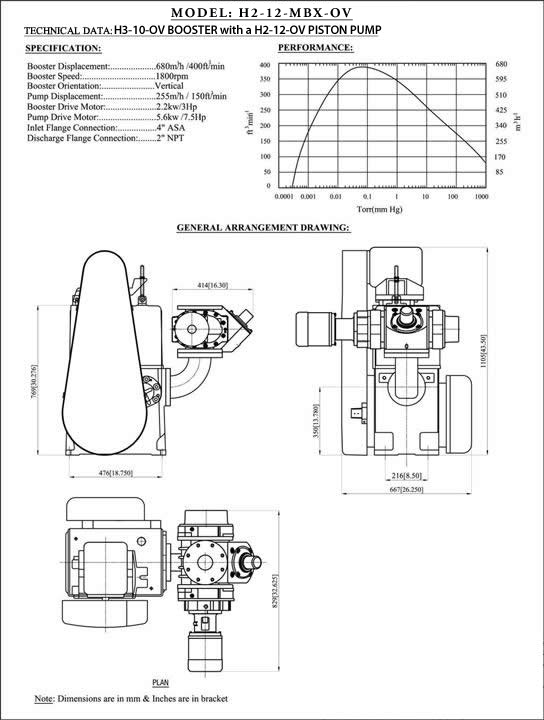

H2-12-MBX-OV RP-150/3X10-MBV-400-CFM 150/400 680 1800-7.5 3600-3 Click Here Click Here

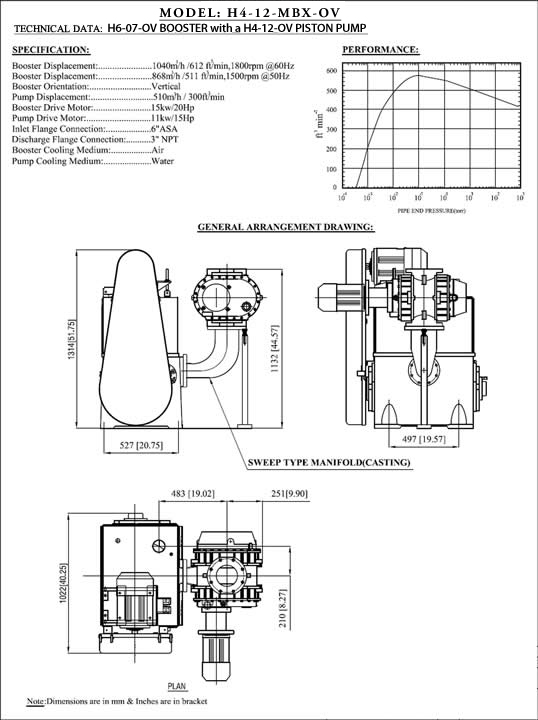

H4-12-MBX-OV RP-300/6X7-MBV-612-CFM 300/600 1040 1800-10 1800-7.5 Click Here Click Here

STOKES/EDWARDS AND HAMILTON VACUUM NOMENCLATURE Equivalents FOR REFERENCE
(Stokes and Edwards are a registered Trademark of Edwards Vacuum)
Stokes/Edwards 1700 Series Hamilton 1700 Series Mechanical Booster "Package Systems" PS
Booster Displacement  Description  Booster Displacement Description
Stokes 1721 150/1300 CFM 900-170-061 H17-21-OV 150/1300 CFM 150 CFM Rotary Piston/1300 CMF Booster
Stokes 1721-S 150/1600 CFM 900-170-074 H17-21S-OV 150/1600 CFM 150 CFM Rotary Piston/1600 CMF Booster
Stokes 1721-BP 150/1300 CFM 900-1700-BP H17-21-BP-OV 150/1300 CFM 150 CFM Rotary Piston/1300 CMF Bypass Booster
Stokes 1722 300/1300 CFM 900-1700-62 H17-22-OV 300/1300 CFM 300 CFM Rotary Piston/1300 CMF Booster
Stokes 1722-BP 300/1300 CFM  900-170-62B H17-22-BP-OV 300/1300 CFM 300 CFM Rotary Piston/1300 CMF Bypass Booster
Stokes 1738 300/2000 CFM 900-170-038 H17-38-OV 300/2000 CFM 300 CFM Rotary Piston/2000 CMF Booster
Stokes 1738-BP 300/2000 CFM 900-170-38B H17-38-BP-OV 300/2000 CFM 300 CFM Rotary Piston/2000 CMF Bypass Booster
Stokes 1738-HCBP 600/2000 CFM 900-170-38B H17-38-HCBP-OV 600/2000 CFM 600 CFM Rotary Piston/2000 CMF Bypass Booster
Stokes 1739 300/2600 CFM 900-170-039 H17-39-OV 300/2600 CFM 300 CFM Rotary Piston/2600 CMF Booster
Stokes 1739-BP 300/2600 CFM 900-170-39B H17-39-BP-OV 300/2600 CFM 300 CFM Rotary Piston/2600 CMF Bypass Booster
Stokes 1739-HCBP 600/2600 CFM 900-170-39B H17-39-HCBP-OV 600/2600 CFM 600 CFM Rotary Piston/2600 CMF Bypass Booster
Stokes 1754 300/3000 CFM 900-170-054 H17-54-OV 300/3000 CFM 300 CFM Rotary Piston/3000 CMF Booster
Stokes 1754-HC 600/3000 CFM  900-170-055 H17-54HC-OV 600/3000 CFM 600 CFM Rotary Piston/3000 CMF Booster

Stokes/Edwards MB Series Hamilton Mechanical Booster Packages MBP Series
Booster Displacement  Description  Booster Displacement Description
Stokes 148-MB 50/125 CFM Discontinued H1-48-MB-OV 50/125 CFM 50 CFM Rotary Piston/125-CMF Booster
Stokes 148-MBX 50/245 CFM Discontinued H1-48-MBX-OV 50/245 CFM 50 CFM Rotary Piston/245-CMF Booster
Stokes 212-MB 150/245 CFM  Discontinued H2-12-MB-OV 150/245 CFM 150 CFM Rotary Piston/245-CMF Booster
Stokes 212-MBX 150/400 CFM Discontinued H2-12-MBX-OV 150/400 CFM 150 CFM Rotary Piston/400-CMF Booster
Stokes 412-MB 300/400 CFM Discontinued H4-12-MB-OV 300/400 CFM 300 CFM Rotary Piston/400-CMF Booster
Stokes 412-MBX 300/612 CFM 412/607 CFM H4-12-MBX-OV 300/600 CFM 300 CFM Rotary Piston/600-CMF Booster



>>Features of Booster Vacuum Pump Systems
  • Cost Effective Rotary Piston Vacuum Pump and Booster System
  • Performance and Durability at a reduced cost
  • Skid mounted Turnkey Operation
  • Both Direct Drive or Belt Drives are available for Boosters
  • Inlet traps, exhaust Filters, Fluids available
  • All Spare Parts are Available in Stock
  • Three Years Warranty on Material & Manufacturing Defects
