OmegaVac Vacuum Products will assist you in obtaining your vacuum products and equipment, from repair or replacement parts to vacuum pumps, booster vacuum systems and pumps to any other vacuum product to help in managing your facility.

Edwards EM Series Rotary Vane Pumps

>>Models of Edwards EM Series Rotary Vane Pumps


  • Reliable operation
  • Compact and quiet
  • Easy to operate
  • All pumps externally approved to EN61010 and UL61010 standards
  • Integral IEC 60320 connector
  • Gas ballast valve for large water vapour handling capacity

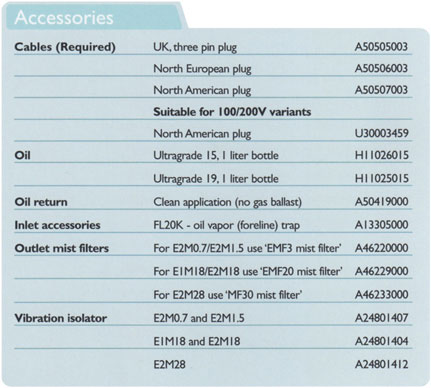

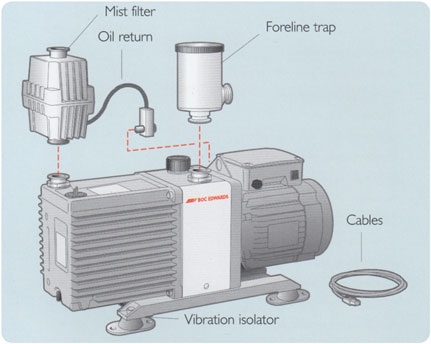

  • Full range of accessories available including a great value Mist Filter option

The EM range of oil-sealed rotary pumps renowned for their high ultimate volume, rapid pumping speed, quiet operation and ability to handle vapor - have become the industry standard for laboratory applications. All pumps in the EM range are independently approved to UL and CSA standards and backed by BOC Edwards worldwide service and support.

Edwards EM 28 Vacuum Pump
Edwards EM 18 Vacuum Pump

Edwards EM 15 Vacuum Pump
Edwards EM 7 Vacuum Pump
Typical Applications Ordering Details
Instrumentation E2M28 E2M28 E2M28 E2M1.5
E2M0.7
Analytical instruments - GCMS       •
Analytical instruments - LCMS •   •
Automotive     •
Beam lines and high-energy physics     • •
Centrifuges, ultra-high speed     •
Coating     • •
Cryogenics     • •
Degassing/curing - oil epoxy resin • • •
Distillation/extraction/filtration     •
Freeze drying     •
Furnaces     •
Gas bottle filling/emptying       •
Glove boxes, ovens     • •
Laboratory bench top vacuum • • • •
General
Lasers, gas recovery & recirculation     • •
Leak detectors, Helium • • • •
Load locks and transfer chambers     • •
Refrigeration manufacture     •
Research and development • • • •
Rotary, centrifugal evaporators     •
Scanning electron microscopes - SEM     •
SEM/FIB (Ion beam repair)     •
Solvent recovery     •
Surface science instruments     •
Turbomolecular backing pumps • • • •
TV manufacturing/light bulb manufacture     •
  Description Order Number*
E2M0.7 E2M0.7 Pump 1ph, 200 to 230V 50/60Hz A37141919
  E2M0.7 Pump 1ph, 100/200V 50/60Hz A37141902†
E2M1.5 E2M1.5 Pump 1ph, 200 to 230V 50/60Hz A37132919
  E2M1.5 Pump 1ph, 100 to 115V 50/60Hz A37132902†
  fitted with NA cable A37122902P
E1M18 E1M18 Pump 1ph, 115V, 200 to 230V 50/60Hz A34317984
  E1M18 Pump 1ph, 100/200V 50/60Hz A34315094
  E1M18 Pump 3ph, 200-220/380-415V 50HZ
  200-230/460V 60Hz A34310940
E2M18 E1M18 Pump 1ph, 115V, 200 to 230V 50/60Hz A36317984†
  E1M18 Pump 1ph, 100/200V 50/60Hz A36315904
  E2M18 3ph, 200-220/380-415V 50Hz
  200-230/460V 60Hz A36310940
E2M28 E2M28 Pump 1ph, 115V, 200 to 230V 50/60Hz A37317984†
  E2M28 Pump 1ph, 100/200V 50/60Hz A37315904
  E2M28 3ph, 200-220/380-415V 50Hz
  200-230/460V 60Hz A37310940
*PFPE versions also available - contact us for more information.
† This part number includes the line cord if ordered in the US.

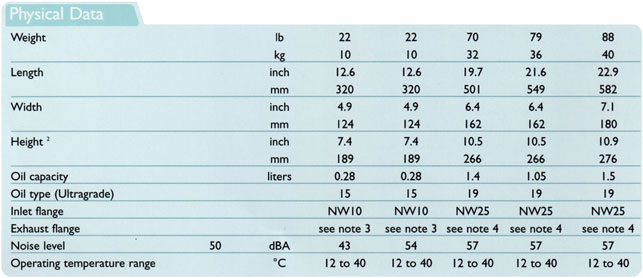

Specifications
