Edwards Oil Sealed Rotary Pump E2M80

>>Models of Edwards Oil Sealed Rotary Pump E2M80


The Edwards E2M80 range of direct drive Rotary Vane Pumps are inherently compact and vibration free with their finger-proof fan and coupling housings and totally enclosed fan-cooled motors, they offer excellent operator protection.

The EM pumps are fan-cooled to give the best combination of performance, reliability and cost in relation to the anticipated applications.

These pumps are available in two stage designs in sizes up to 90 m3h-1.


Edwards Oil Sealed Rotary Pump E2M80

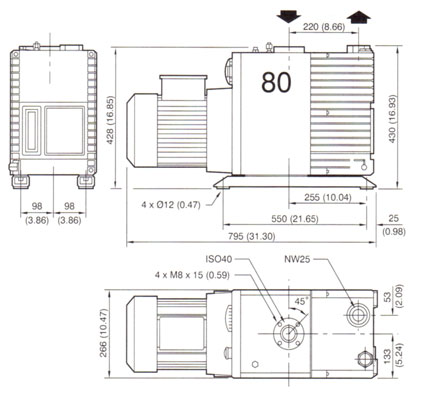

Dimensions Ordering Information
  Product description Order Number
EM80 Industrial E2M80 220-240 V or 380-415 V, 3-ph, 50 Hz A36501935
  E2M80 208-230 V or 460 V, 3-ph, 60 Hz A36502952
EM80 PFPE* E2M80FX 220-240 V or 380-415 V, 3-ph, 50 Hz A36511935
  E2M80FX 208-230 V or 460 V, 3-ph, 60 Hz A36512952
EM80 ATEX** E2M8OT4 400 V, 3-ph, 50 Hz A36518993

Ultragrade 70 oil, NW40 0-ring and centering ring, ISO 40 "C" clamp, bolts, washers, 28 mm external diameter coupling tube and compression sleeve for outlet, ISO 25 "C" clamp, bolts and washers supplied with each pump.

*No oil supplied
**ATEX EM pumps may be supplied with ATEX classification either as part of a pump system or stand-atone, on application. Please consult Edwards.

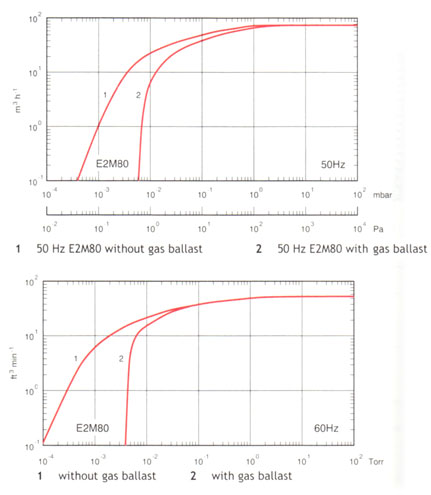

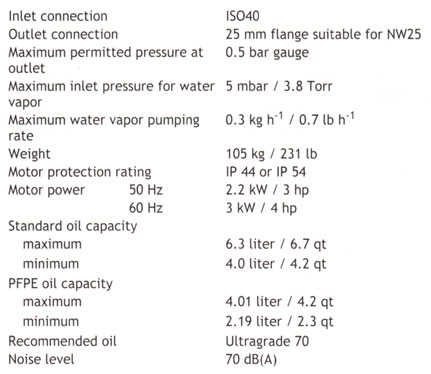

Technical Data Speed and Power Curves
