Edwards RV Series Rotary Vane Pumps

>>Models of Edwards RV Series Rotary Vane Pumps


  • Unique throughput selector allows pump to be optimised for high and low pressure applications
  • Hardened shaft sleeve for reliability & durability
  • Gas Ballast - highest vapour pumping rate in class! Use of Gas Ballast Oil Return strongly recommended

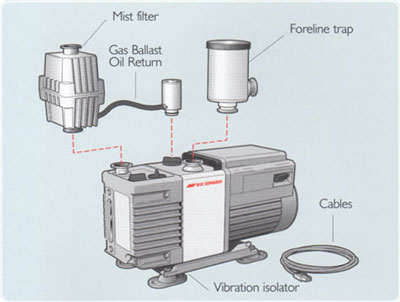

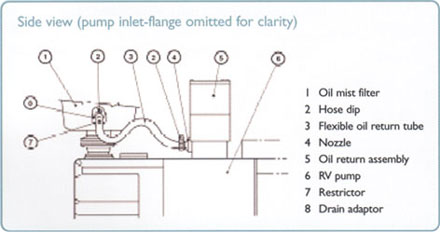

  • Gas Ballast Oil Return (GBOR) unique accessory allows: Return of oil and gas ballast simultaneously 3 different settings Easy addition to existing mist filters

For 10 years, BOC Edwards RV pumps have become the industry standard vacuum pump for laboratory and scientific instrument primary pumping applications. RV pumps are unique in their capability to deliver reliable pumping performance at high or low throughput with high ultimate vacuum. This combined with ultra-low noise levels, makes them ideal for a wide range of applications and environments.

All pumps are approved to UL and CSA standards by an external test house. BOC Edwards has a global network, providing world-wide support for product applications and service.

Edwards RV 12 Vacuum Pump
Edwards RV 8 Vacuum Pump

Edwards RV 5 Vacuum Pump
Edwards RV 3 Vacuum Pump
Typical Applications Ordering Details
  RV 3/5 RV 8/12
Analytical instruments - GCMS •
Analytical instruments - LCMS   •
Centrifuges, ultra-high speed • •
Coating • •
Degassing/curing - oil epoxy resin • •
Distillation/extraction/filtration • •
Freeze drying • •
Furnaces • •
Gas bottle filling/emptying • •
Glove boxes, ovens • •
Laboratory bench top vacuum • •
Leak detectors, Helium • •
Load locks and transfer chambers • •
Refrigeration manufacture • •
Research and development • •
Rotary, centrifugal evaporators • •
Scanning electron microscopes - SEM • •
SEM/FIB (Ion beam repair) • •
Solvent recovery • •
Surface science instruments • •
Turbomolecular backing pumps • •
Description   Order Number
    Ultragrade Oil*
RV3 115/230V, 50/6OHz set to 230V A65201903
  100/20OV, 50/6OHz A65201904
  200-22OV/380-415V, 5OHz
  200-230/46OV, 60Hz, 3 phase A65201905
  115/23OV, 50/6OHz set to 115V A65201906†

RV5 115/23OV, 50/6OHz set to 230V A65301903
  100/20OV, 50/6OHz A65301904
  200-22OV/380-415V, 5OHz
  200-230/46OV, 6OHz, 3 phase A65301905
  115/230V 50/60Hz set to 115V A65301906†

RV8 115/23OV, 50/6OHz set to 230V A65401903
  100/20OV, 50/60Hz A65401904
  200-22OV/380-415V, 50Hz
  200-230/46OV, 60Hz, 3 phase A65401905
  115/23OV, 50/6OHz set to 115V A65401906†

RV12 115/230V, 50/6OHz set to 230V A65501903
  100/20OV, 50/60Hz A65501904
  200-22OV/380-415V, 50Hz
  200-230/46OV, 60HZI 3 phase A65501905
  115/230V, 50/60Hz set to 115V A65501906†

*PFPE versions also available - contact us for more information.
† This part number includes the line cord if ordered in the US.

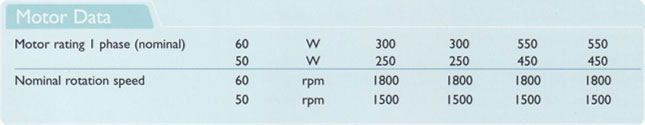

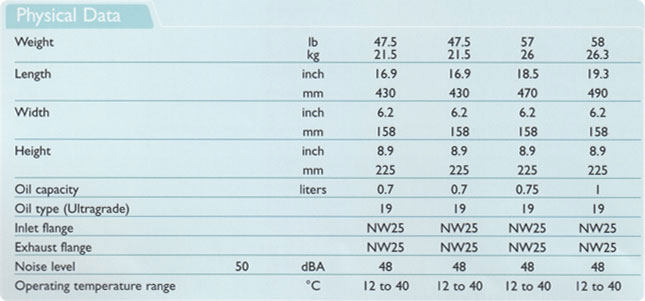

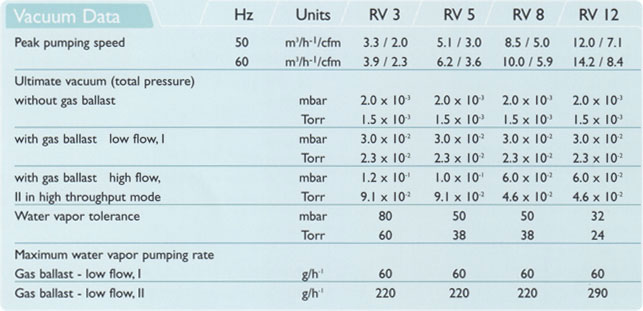

Specifications
