Edwards XDS Dry Scroll Pumps

>>Models of Edwards XDS Dry Scroll Pumps


  • Totally dry
  • Ultra low maintenance - Service the XDS yourself in less than 10 minutes!
  • Variable gas-ballast feature
  • Oxygen pumping compatible
  • Hermetically sealed

The XDS range of pumps reflects a unique award winning dry pumping technology. It is designed to provide a robust and clean dry pumping solution for all applications.

All pumps in the range are approved to UL and CSA standards and backed by BOC Edwards' worldwide service and support.

XDS pumps use an innovative patented bearing shield to isolate the vacuum environment from all forms of lubricant, not only making it totally dry but also hermetically sealed.

XDS Dry Scroll Pump 35
XDS Dry Scroll Pump 10

XDS Dry Scroll Pump 5
XDS Pump Cross Section
Typical Applications Ordering Details
Instrumentation XDS5 XDS10 XDS35i
Analytical instruments - GCMS •
Analytical instruments - LCMS   • •
Automotive • • •
Beam lines and high-energy physics • • •
Centrifuges, ultra-high speed • • •
Coating • • •
Cryogenics • • •
Degassing/curing - oil epoxy resin • • •
Distillation/extraction/filtration • • •
Freeze drying • • •
Furnaces • • •
Gas bottle filling/emptying     •
Gel Drying • • •
Glove boxes, ovens • • •
Laboratory bench top vacuum • • •
General
Lasers, gas recovery & recirculation • • •
Leak detectors, Helium • • •
Load locks and transfer chambers • • •
Pumping Oxygen/Oxidants • • •
Rare gas re-circulation • • •
Rare gas recovery • •
Refrigeration manufacture • • •
Research and development • • •
Rotary, centrifugal evaporators • •
Scanning electron microscopes - SEM • • •
SEM/FIB (Ion beam repair) • • •
Solvent recovery • • •
Surface science instruments • • •
Turbomolecular backing pumps • • •
  Description Order Number
XDS5 XDS5 1ph, 115V/230V 50/6OHz set to 230V A72401903
  XDS5 1ph, 100/200V set to 200V A72401904
  XDS5 3ph, 200-220/380-415V 50HZ Contact
BOC Edwards
  200-230/460V 60Hz
  XDS5 1ph, 115V/230V 50/60Hz set to 115V A72401906†
XDS10 XDS10 1ph, 115V/230V 50/60Hz set to 230V A72601903
  XDS10 1ph, 100/200V set to 200V A34315094
  XDS10 3ph, 200-220/380-415V 50Hz Contact
BOC Edwards
  200-230/460V 60Hz
  XDS10 1ph, 115V/230V 50/60Hz set to 115V A72601906†
XDS35i XDS35i 1ph, 100-120/200-230V 50/60Hz
  with IEC60320 connector fitted A73001983†
† This part number includes the line cord if ordered in the US.

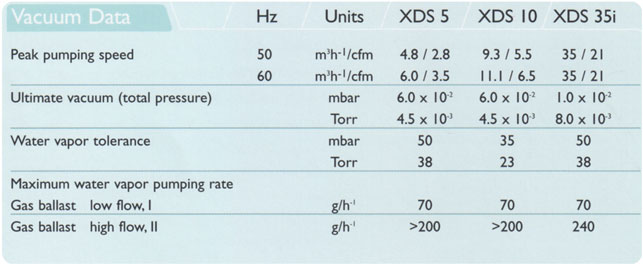

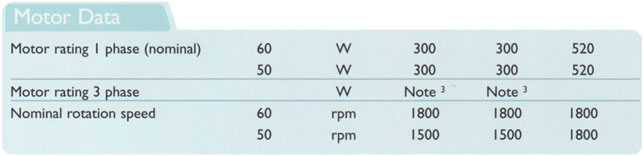

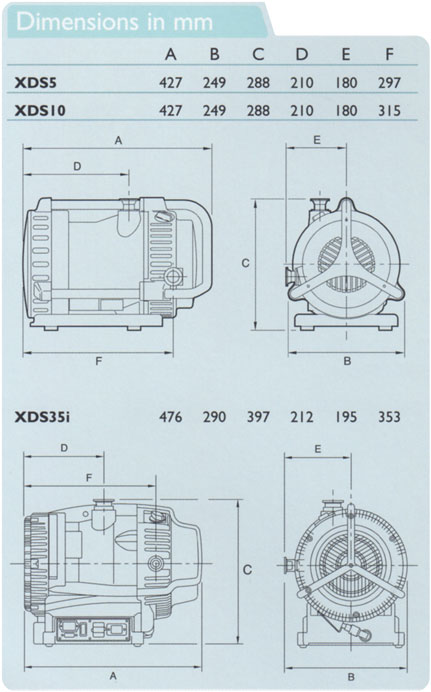

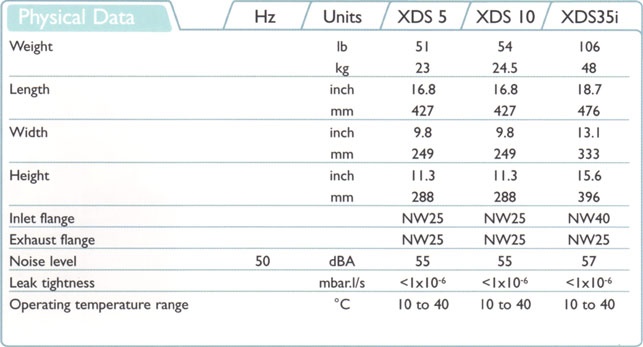

Specifications
